383 MAG Stroker Bravo MPI 350HP

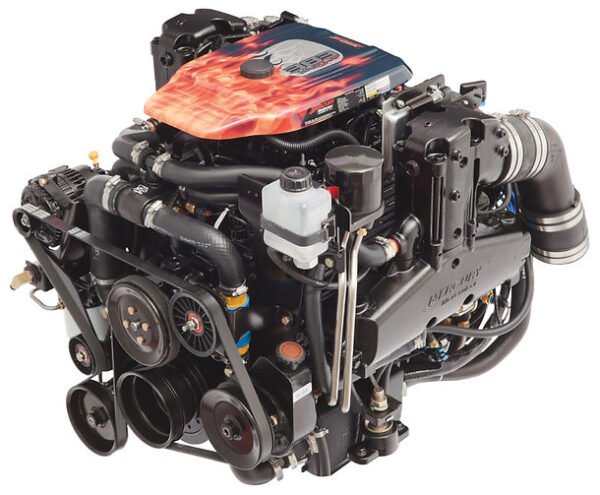

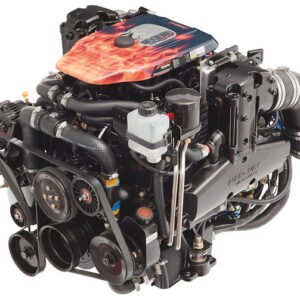

Mercruiser 383 MAG Stroker Bravo MPI 350HP Marine Diesel Engine

Original price was: $19,800.00.Current price is: $16,088.00.

In stock

Description

Thanks to it’s size and power this is the ideal replacement engine for 350 MAG, 7.4L, and 7.4L MPI engines that power cruisers, small boats, and large runabouts.

  • Dry-Joint Exhaust 1-Year Factory Backed Limited Warranty
  • 2 Years of Mercury Product Protection Coverage Available



HP / kW @ flywheel
  • 350 / 261
Maximum RPM (WOT)
  • 4800 – 5200
Engine type
  • V-8 Remanufactured Iron Marine Block
Displacement (CID/L)
  • 383 / 6.3
Bore and stroke
  • 4.03 x 3.75″ / 102 x 95 mm
Compression ratio
  • 9.0:1
Fuel ethanol tolerance
  • Up to 10%
Engine control system
  • ECM 555 W/Knock Control & Crankshaft Trigger
Fuel delivery system
  • GEN II Cool Fuel with Boost Pump
Fuel injection system / carburetor type
  • Multi-point electronic fuel injection (MPI)
Air induction
  • Two-piece long runner intake with 75 mm throttle body (80 mm w/DTS)
Alternator amp / Watt
  • 65 amp / 917 watt
Water drain system
  • Multi-point drain
Exhaust system
  • Electro-deposition paint coated warm iron manifold with wet joint elbow
Cooling system
  • 160F Raw Water Bravo with Sea Water Pump
Accessory drive system
  • Serpentine belt
Lubrication system
  • High Flow 100 psi Oil Pump
Recommended oil
  • Mercury MerCruiser Synthetic Blend 25W-40, NMMA Certified FC-W Synthetic Blend
Pistons
  • Cast Hypereutectic Alloy
Cranktrain
  • Powder Metal Rods and Forged 4340 Steel Crankshaft
Rocker arms
  • 1.6:1 Roller Tip Steel
Dimensions (L x W x H)
  • 32 x 30 x 22″ / 814 x 740 x 559 mm
Weight (engine only)
  • 932 lbs / 423 kg
